Product Description

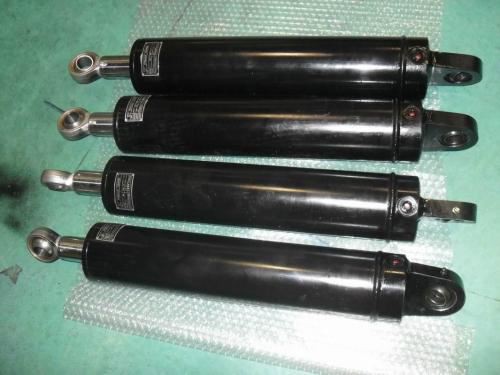

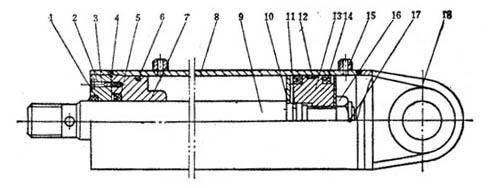

Cylinder DG series is double-acting single piston rod and tail single earring mounting hydraulic cylinder which are mainly used for hydraulic transmission of construction machinery, transportation machinery, mining machinery and other vehicles. Working pressure is 8-16mpa, with cylinder diameters of Φ40-Φ200mm. Function of cylinder DG series is to change pressure energy of liquid into mechanical energy of moving parts, so that moving parts can realize reciprocating linear motion or swing. It is an executive mechanism for complex motion in hydraulic system.

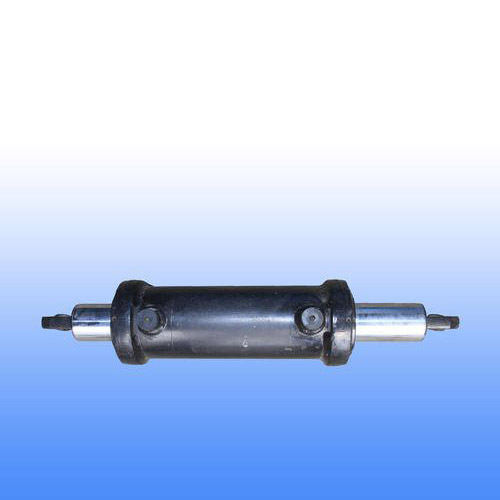

Cylinder DG series, especially vehicle hydraulic cylinders are composed of 14 cylinder diameters and 28 specifications of single piston double acting differential cylinder according to two speed ratios. In addition, there are three kinds of cylinder head flange, intermediate shaft pin and base mounting, which can also be made into double piston rod double acting constant speed oil cylinder. In addition, with or without buffer, 384 varieties are composed of the above 28 specifications.
Working conditions of Cylinder DG series:
| Item | Specifications | Remarks |
| Working pressure Mpa | 25, 35 | |
| Working medium | mineral oil;
phosphoric acid oil; water glycol |
|
| Working temperature ℃ | - 30 ～ + 100 | |
| medium viscosity CTS | 2.8-380 | |
| speed m/s | 0.5 | using special seal can reach 15 |
